Anatomy of a live deployment

23 March 2024 · Filed in Platform Development

You have dockerised your web application, and now it’s time for the world to see it. What does that look like?

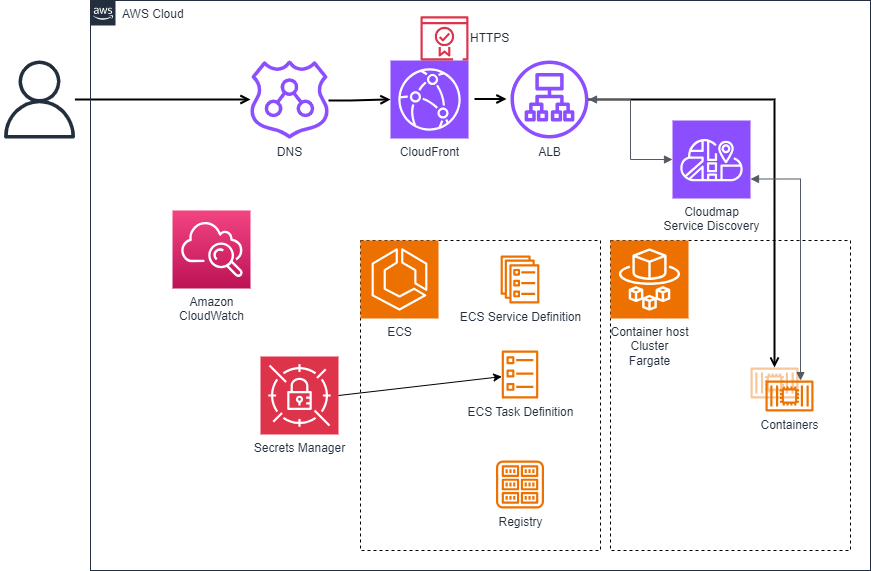

The flow once deployed

The user asked for your website. After a DNS lookup, the request goes to

1) Cloudfront, frontend caching

2) ALB, Application Load Balancer, because you have more than 1 container running, right?

3) The ALB returns the request from the container.

Easy right. Let’s break those steps down.

Cloudfront

The front door to your web application. At the most basic level, it will cache what it can and forward requests to the origin, in our case the ALB.

Security is checked at this level, SSL/TLS, and rules to defend against DDoS (Distributed Denial of Service) attacks.

Further to this, rules can be create to split traffic at a global level. Want to serve customers in Europe, use the London load balancer setup. Customers in USA, route to Virginia for a faster response.

ALB

The Application Load balancer enables incoming requests (load) to be balanced across multiple deployed containers (instances) which enables horizontal scaling of your application.

CloudMap

So that it can send the request to the correct network address, it needs to query CloudMap. This is like dns , but with a little more data, like port numbers. When ECS (keep reading for more) launches your container, it registers it with the CloudMap Service Discovery, so that we and our Load Balancer can discover it.

ECS

Elastic Container Service is AWS’ container orchestration service. With the definition of a Task, ECS can launch a container image, with some configuration, like environment variables and secrets, on an EC2 Server or Fargate.

We can also define a Service, which enables us to define how many Tasks make up a service, as well as defining a Load Balancer to report to.

More advance configuration can enable ‘auto-scaling’, where at a given trigger (e.g. time of day) we can set the number of instances we want to run. Handy for Dev environments to take a break when the Tests are not running.

Fargate

In this example I have chosen Fargate as the compute provider. This means we do not have to look after the servers, we simply use some that AWS have made available to us.

Conclusion

With this little lot configured, we can share our web application with the world. Some of these components can be shared if you have more than one service.

You may also require extra components, such as databases, logging and metrics (Cloudwatch), or even use AWS Container Registry.

Come ask me and the community questions. You can find me on Slack.

If you found this useful, subscribe to updates and look out for my YouTube channel content.
